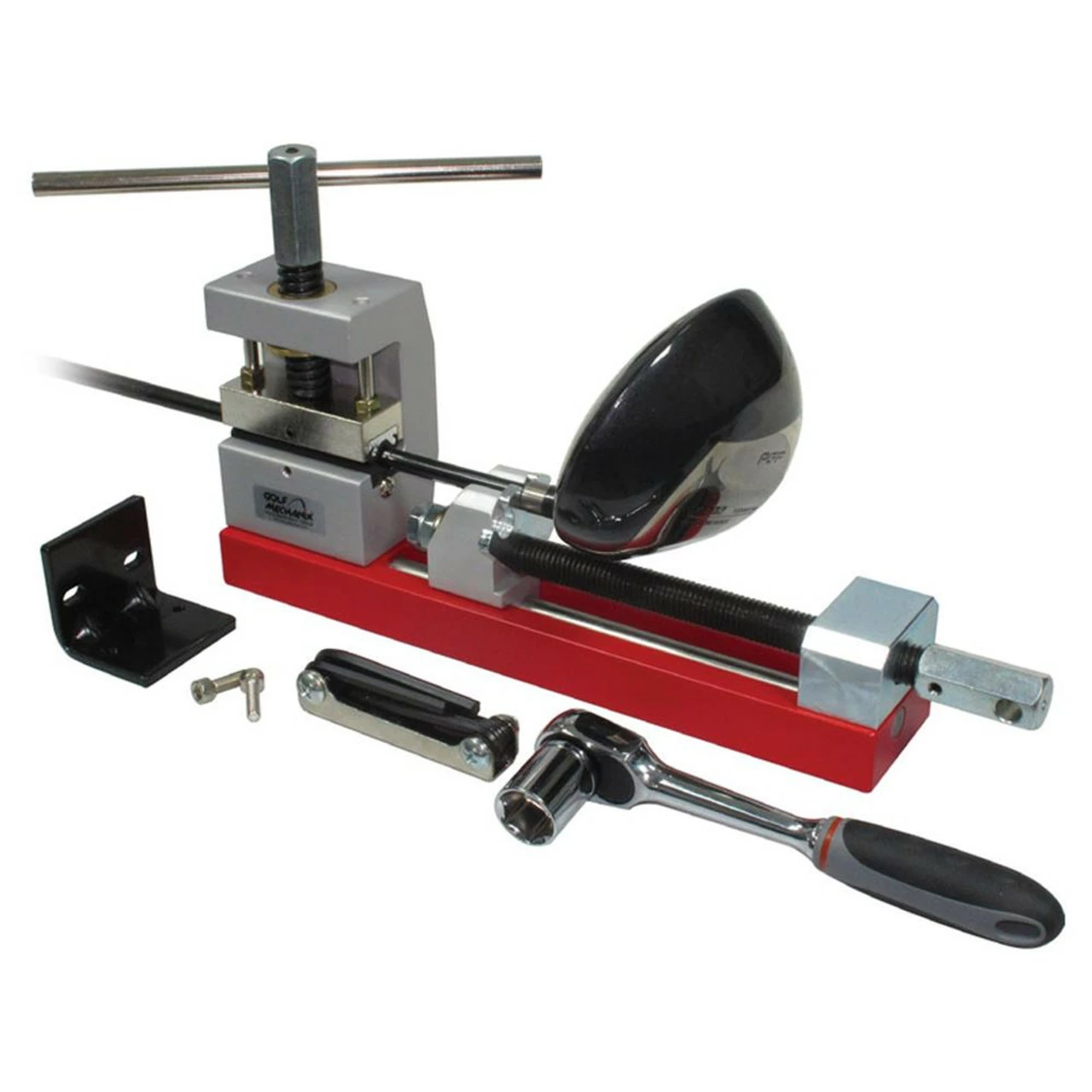

Clubmaker’s Compact Shaft Extractor-GM1080

The Clubmaker’s Shaft Extractor with industrial performance is designed for smaller shops. It checks all the boxes for functionality, pulling power and serviceability. This extractor has a full 5″ throw for working on deep shafted wedges, hybrids and shafts with adapters, while the gated hosel stopper has clearance for .335 .370 & .410 shaft tips. To prevent weakening shafts that are to be re-used; A powerful 700 Lbs. compression spring embedded into the hosel stopper pushes the club-head out as the epoxy bond disintegrates under the applied heat. A judicious selection of materials, spec’s and processes puts The Clubmaker’s shaft extractor in a class all by itself!

Features:

• Extractor can be held in a bench vise or mounted to work bench
• High load, low friction, low wear trapezoidal thread and brass nut produce the large mechanical advantage and efficient transfer of power needed to pin the shaft down with minimal slippage.
• 700 Lbs. Power spring pushes against the hosel stopper, liberating the head as soon as the epoxy bond starts to break down under the applied heat.
• High Shear, vulcanized rubber jaws constricts shaft over its circumference, distributing pressure evenly while creating slippage inhibiting friction over a larger surface area.
• Quick 1/4 turn ratcheting action provides leverage, speed and reduces stress on the palm and wrist. Wrench also fits on shaft clamp nut doubling efficiency
